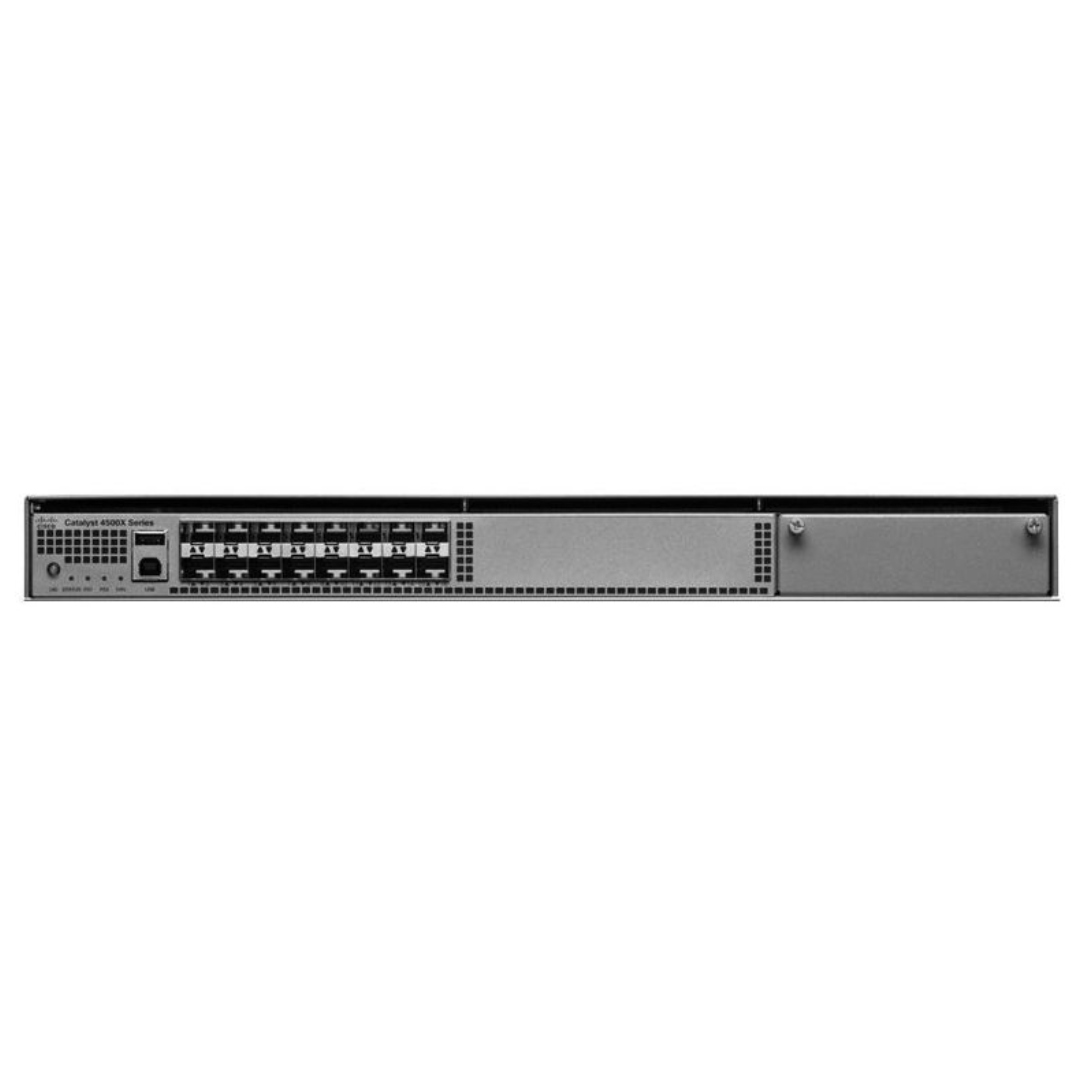

CISCO 4500X-16SFP SWITCH RENTAL

15000 INR/Piece

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

CISCO 4500X-16SFP SWITCH RENTAL Price And Quantity

Minimum Order Quantity 1 Piece
Price 15000 INR/Piece

CISCO 4500X-16SFP SWITCH RENTAL Trade Information

Payment Terms Paypal Cash in Advance (CID)
Delivery Time 7 Days

Product Description

Expansion Module (Optional)	8—10 GE SFP+/SFP “ C4KX-NM-8SFP+
Management Port	10/100/1000 Base-T
USB Port	Type A (Storage And Boot) Up To 4 GB
Dual Power Supply	Yes
Field Replaceable Fans	Yes (5 Fans)
Fan Redundancy	No Performance Impact With Single Fan Failure
System Throughput	Up To 800 Gbps
IPv4 Routing In Hardware	Up To 250 Mpps
IPv6 Routing In Hardware	Up To 125 Mpps
L2 Bridging In Hardware	Up To 250 Mpps
Media Access Control (MAC) Entries	55K
Forwarding Entries	16—10 GE Port Base SKU: IPv4: 64K, IPv6: 32K
Flexible Netflow Entries	128K
Switched Port Analyzer (SPAN), Remote Switched Port Analyzer (RSPAN)	8 Line Rate Bidirectional Sessions (Ingress And Egress)
Total VLANs	4094
Total Switched Virtual Interfaces (SVIs)	4094
IGMP Groups	32K
Multicast Routes	16—10 GE Port Base SKU: IPv4: 24K, IPv6: 12K
Dynamic Host Configuration Protocol (DHCP) Snooping Entries	12K (DHCP Snooping Bindings)
ARP Entries	47K
Spanning Tree Protocol Instances	10K
Jumbo Frame Support For Bridged And Routed Packets	Up To 9216 Bytes
High Availability Solution	Virtual Switching System (VSS)
Number Of Stackable Switches In VSS	Up To 2
VSS Throughput	Up To 1.6 Tbps
Virtual Switch Link	1GE Or 10GE
Max Number Of Virtual Switch Links	8
In-Service Software Upgrade	Across The Switches
Nonstop Forwarding With Stateful Switchover	Across The Switches
Onboard Memory (SRAM DDR-II)	4 GB
Port Buffers	32-MB Shared Memory
CPU	Dual Core 1.5 GHz
NVRAM	2 GB
Optional External Memory (SD Card)	2 GB
Port Queues	8 Queues/Port
CPU Queues	64
QoS Entries	128K (64K Ingress And 64K In Egress) Shared With ACL
Aggregate Rate-Limiting	Ingress Port Or VLAN And Egress VLAN Or Layer 3 Port
Rate-Limiting Level Types	Committed Information Rate (CIR), Peak Information Rate (PIR)
Aggregate Traffic Rate-Limiting Policers (1K=1024)	16K
Flow-Based Rate-Limiting Method; Number Of Rates	Supported Using Flow-Records In The Classification Criteria And Policing Action
Qos Policy Enforcement	Per Port Or Per VLAN Or Per Port, Per VLAN Granularity
Class Of Service (CoS)	Yes
Differentiated Services Code Point (DSCP)	Yes
Port Security	Yes
IEEE 802.1x And 802.1x Extensions	Yes
VLAN, Router, And Port ACLs	Yes
Security ACL Entries (1K=1024)	128K (64K Ingress And 64K In Egress) Shared With QoS
Unicast Reverse Path Forwarding (URPF) Check In Hardware	Yes
CPU Rate Limiters (DoS Protection) Includes Control Plane Policing	Yes
Private VLANs	Yes
Micro Flow Policer	Yes. Supported Using Flow Records In The Class Map
CPU HW Rate Limiters By Packet Per Second (Pps) And Bit Rate Policers (Bps)	Supported In Hardware Control-Plane Policing (CoPP)
Control Plane Policing (CoPP) For Multicast	Yes
ACL Labels	Yes
